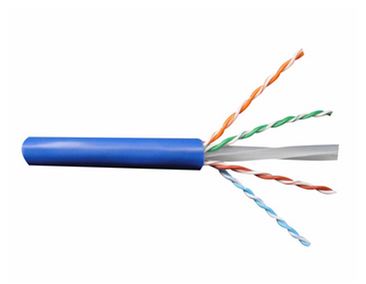

Product Features of LAN Cable U/UTP Cat.6A 23AWG 305M/Box
| Product type | Cat.6A U/UTP |
|---|---|
| Number of pairs | 4 |
| Number of conductors | 8 |
| Transmission speed | 500Mhz |
| Wire gauge size | 23AWG |
| Conductors material | Bare copper |
| External jacket material | PVC/LSZH/PE |
| Conductor Outer Diameter | 0.565±0.005mm |
| Insulation Diameter | 1.02±0.03mm |
| Sheath External Outer Diameter | 7.1±0.4mm |
| Cable length | 305m/Box, 500m/Wooden Drum |
| Certification | CE, UL, RoHS, ETL |
| Warranty | 25 years |
Standard of LAN Cable U/UTP Cat.6A 23AWG 305M/Box
- ISO/IEC-11801
- ANSI/TIA-568-C.2
