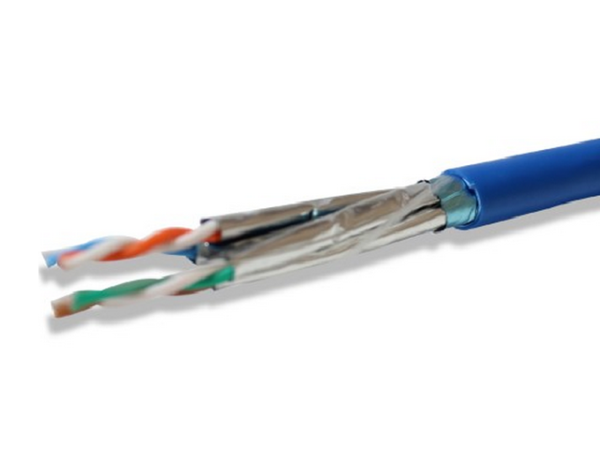

Product Features of LAN Cable F/FTP Cat.6A 23AWG 305M/Box
| Product type | Cat.6A F/FTP |
|---|---|
| Number of pairs | 4 |
| Number of conductors | 8 |
| Transmission speed | 500Mhz |
| Wire gauge size | 23AWG |
| Conductors material | Bare copper |
| External jacket material | PVC/LSZH/PE |
| Conductor Outer Diameter | 0.560±0.005mm |
| Insulation Diameter | 1.330±0.05mm |
| Sheath External Outer Diameter | 7.5±0.5 mm |
| Cable length | 305m or 500m/Wooden Drum |
| Certification | CE,UL,RoHs,ETL |
| Warranty | 25 years |
Standard of LAN Cable F/FTP Cat.6A 23AWG 305M/Box
- ISO/IEC-11801
- ANSI/TIA-568-C.2
