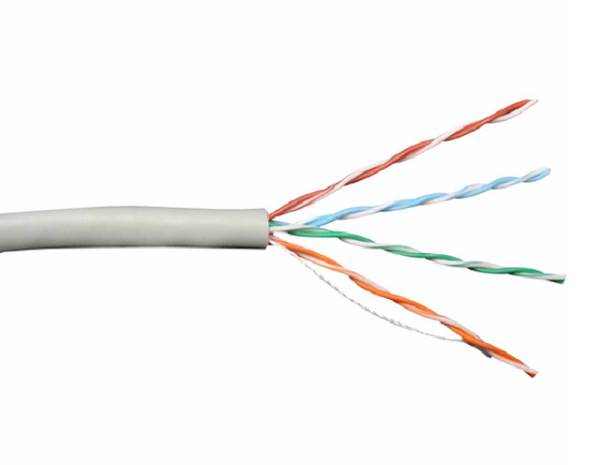

Product Features of LAN Cable FTP Cat.5e Solid 24AWG 305M/Box
| Product type | Cat.5 FTP |
|---|---|
| Number of pairs | 4 |
| Number of conductors | 8 |
| Transmission speed | 100Mhz |
| Wire gauge size | 24AWG |
| Conductors material | Bare copper |
| External jacket material | PVC/LSZH/PE |
| Conductor Outer Diameter | 0.500±0.005mm |
| Insulation Diameter | 1.00±0.03mm |
| Sheath External Outer Diameter | 6.2±0.04mm |
| Cable length | 305m or 500m /Wooden Drum |
| Certification | CE,UL,RoHs,ETL |
| Warranty | 25 years |
Standard of LAN Cable FTP Cat.5e Solid 24AWG 305M/Box
- ISO/IEC-11801
- ANSI/TIA-568-C.2
- EN 50173
